Samprit Engineering is a prominent Shaft Collar Manufacturers and Suppliers in Pune. We offer high-quality shaft collars that can address the needs of various industries. We use high grade materials and technology to produce our products that will have a long life, be reliable, and be fitted perfectly. Our customers are in different industries such as automotive, machinery, and manufacturing industries and we provide both standard and tailored solutions. we ensure that we deliver high quality products, on time, and customer satisfaction excellence by means of our innovative engineering practices

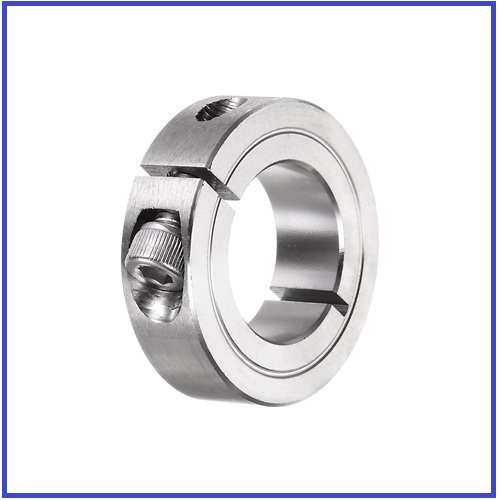

What is Shaft Collar?
It is a mechanical part designed to hold, position, or restrain the motion of parts around a shaft. Shaft collar is an important part of a machine that holds components such as bearings or sprockets in place so that they can operate well.
Types of Shaft Collar
We as Shaft Collar Manufacturers in Pune, have different types of shaft collars, the types are tailored to fit the specific application and performance need they would be as follows:
- Set Screw Shaft Collar: The set screw shaft collar is a simple, but a very efficient part, a common example is to clamp parts such as bearings or pulleys, by screwing onto the shaft surface. It is both firm and suitable when it comes to moderate load applications at a reasonable price.

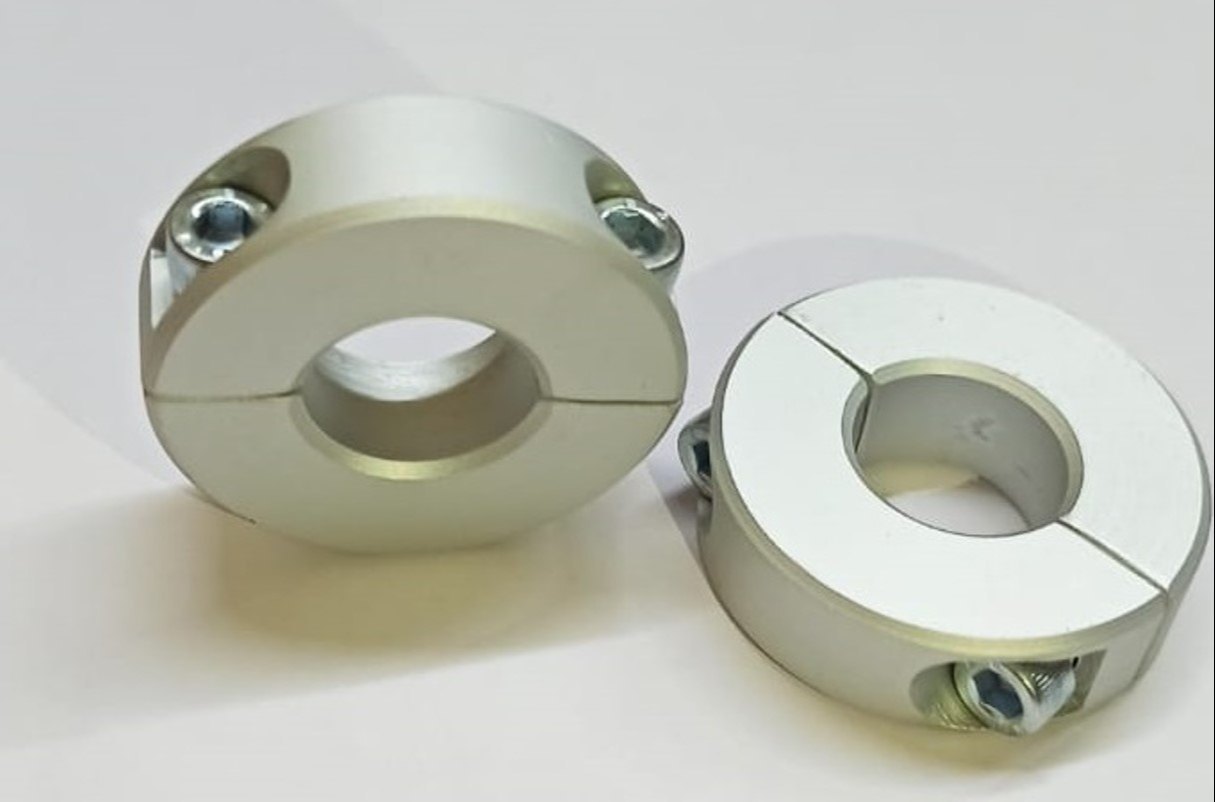

- Clamp Shaft Collars: These are very strong and have even grip and do not damage the shaft also called as split shaft collar. Clamp style shaft collar come in one piece and in a two-piece design and this enable easy installation and removal yet a high degree of alignment and good performance.
- Threaded Shaft Collars: These shaft collars have internal threads matching the shaft, allowing quick positioning and secure axial holding. They offer strong grip in rotating equipment and are ideal for applications requiring frequent adjustments.
- Heavy-Duty Shaft Collars: It is constructed of strong materials to make it have a good grip and durability. Resist extreme load, shock and vibration- best in industrial and construction machinery.
- D-Bore and Hex Bore Collars: It has heavy steel bearings, to fit flat and hex shafts. Offer accurate alignment and effective power transfer in power driven systems.
- Custom CNC-Machined Shaft Collars: These are high-end materials that are designed to fit certain needs. Provide tight fit, smooth finished and high strength in the harsh industrial use.
Technical Specifications for Shaft Collars
As Shaft Collar Suppliers in Pune, we have given below a table of technical specifications for these shaft collars:
| Parameter |
Specification |
| Dimensions |
ID: 3–150 mm · OD: 10–200 mm · Width: 5–50 mm |
| Material |
Steel (EN8/C45), Stainless Steel (AISI 304/316), Aluminum (6061-T6), Plastic (Nylon/Acetal) |
| Fastening Method |
Set Screw, One-Piece Clamp, Two-Piece Clamp |
| Surface Treatment |
Black Oxide (5–10 µm), Zinc Plated (8–12 µm), Anodized (for Aluminum) |
| Tolerances |
Bore: H8 (±0.01 mm) · OD: ±0.05 mm · Width: ±0.02 mm |
| Load Capacity |
100 N – 1000 N (depending on size and material) |
| Operating Speed |
Up to 6000 RPM (standard) · Up to 10,000 RPM (precision types) |
| Temperature Range |
-20°C to +120°C |
Key features of Shaft Collars:
We as Shaft Collar Suppliers in Pune, we provide shaft collars with following features:
- Material Selection: Stainless Steel Collars are made from high quality material.
- High Precision Fit: These are made to fit securely without causing damage to the shaft.
- Ease of installation and customization: Collars have superior holding capability and can be used again, especially with clamp-type collars.
- Corrosion-Resistant Coatings: There is an option available to add corrosion resistant finishes such as black oxide or zinc plating which are long lasting in poor conditions.
- Custom Designs: Team would be able to make bore size, width, and out-diameter, finish as per your specifications.
Applications of Shaft Collars -
As Shaft Collar Manufacturers in Pune, our products are widely used for following functions.
- Machinery and Automation Systems: Keep the automated equipment perfectly in line and position to allow the equipment to run smoothly with minimum vibration.
- Conveyors & Linear Motion: Secure rollers and bearings to ensure stable and reliable operation. Maintain smooth, uniform movement throughout the system.
- Agricultural Equipment: Install bearings and gears designed to perform reliably in harsh outdoor environments. Ensure durability and consistent operation under challenging conditions.
- Gearboxes & Motor Assemblies: Ensure precision machining of parts for accurate alignment and performance. This guarantees efficient torque transfer and smooth mechanical operation.

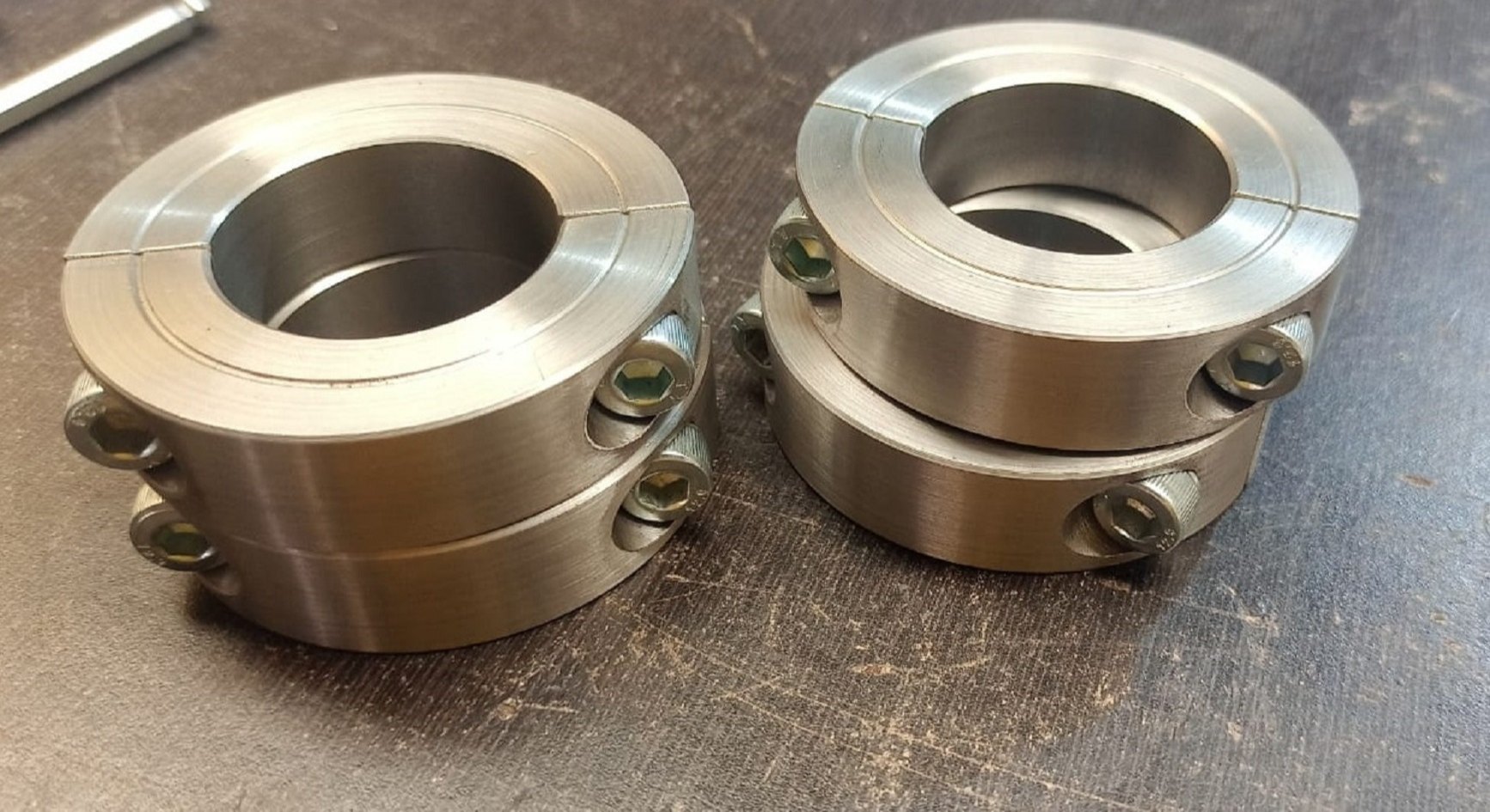

- Robotics & Medical Devices: Robotic Shaft Collar provides lightweight, high precision, and corrosion resistant parts to high-level systems- perfect to high performance and accuracy.
Why Samprit engineering?
- Quality You Can Trust: Our shaft collars are high performance shaft collars that are made with precision, durability and longevity.
- Customer-Centric Approach: Shaft Collar suppliers in Pune have broad selection of shaft collars and customized products are positioned to provide an easy-going operation in any industry.
- Quick and Reliable Service: We provide punctuality with guaranteed quality control with the state-of-the-art facilities.
Samprit Engineering is remarkable Shaft Collar Manufacturers and Suppliers in Pune. We apply state-of-the-art engineering, high-quality material, and accuracy in production to provide high-dependability, long life and performance of the shaft collars. We assure you that we deliver the goods that specifically meet your needs, meet deadlines, and provide an outstanding customer support whether your application needs a traditional or a customized solution. We have shaft collars that enhance the life span, reliability and performance of your equipment. Contact us to get to know more.
